Exceptions - free version

In this section:

Free version

This describes the free version of the dashboard. For more information about the premium version, please contact your Customer Success Manager or Customer Operations Manager.

The free version of Exceptions tab shows a deeper dive into the different Right First Time exceptions and where they occur, for the top five ranked lanes, by:

lane (origin - destination)
temperature range
transportation mode
business unit

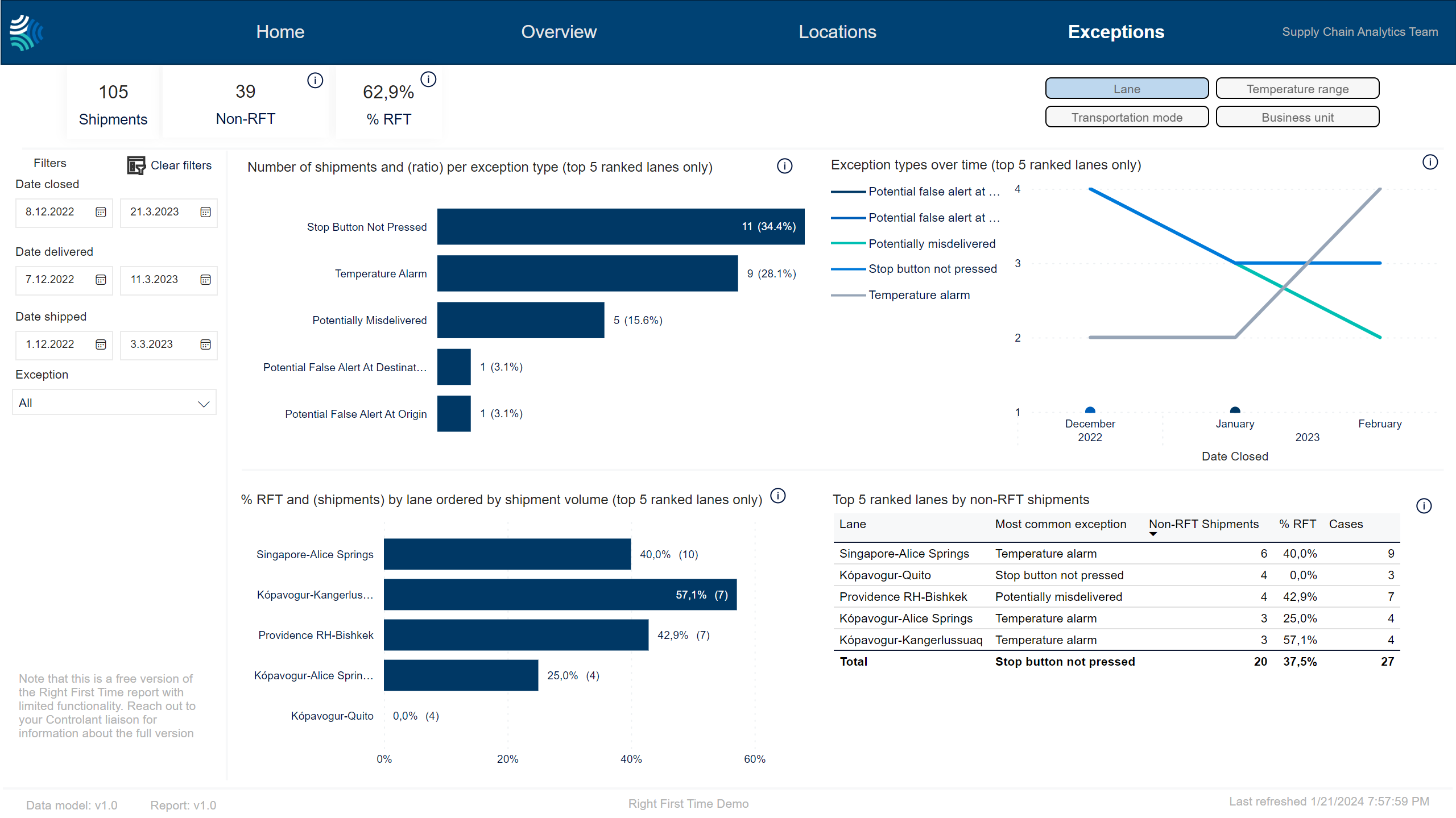

Right first time dashboard - Exceptions tab - free version

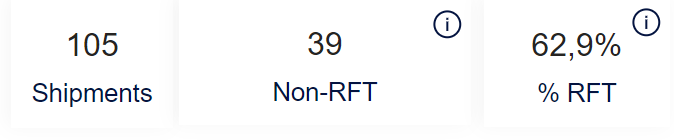

RFT KPIs

Right first time dashboard - locations KPIs

Key performance indicators for selected shipments.

Item	Description
Shipments	Number of shipments closed in the selected period. The default period is 1 January 2023 – present.
Non-RFT	Number of shipments that are Non-RFT in the selected period.
% RFT	Ratio of RFT shipments out of the total number of shipments closed in the selected period.

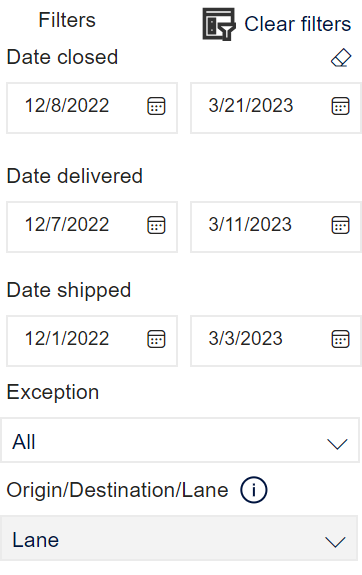

Filters

Note

Not all customers have the same filters. You may not see all of the following filters.

You can use the filter to select shipment data to include in the dashboard using the following criteria:

Note

For each filter, the list that appears will only include items that are present in the selected shipments.

Note

To clear all filters, click .

Item	Description
Date closed	Date range for the date shipment was closed, in `DD-MM-YYYY` format. Type a date, or click to select a date from a calendar. Start of date range for date shipment closed. End of date range for date shipment closed.
Date delivered	Date range for the date shipment was delivered, in `DD-MM-YYYY` format. Type a date, or click to select a date from a calendar. Start of date range for date shipment delivered. End of date range for date shipment delivered.
Date shipped	Date range for the date shipment was shipped, in `DD-MM-YYYY` format. Type a date, or click to select a date from a calendar. Start of date range for date shipment shipped. End of date range for date shipment shipped.
Exception	Exception that occurred during shipment. Click to select, or press CTRL and click to select more than one of the following:: Delivered for 150 days or more - Shipment has been in `Delivered` status for more than 150 days without being closed. Potential false alert at origin - A logger registered a temperature excursion but the logger location data indicates that the shipment was still at the origin site when the temperature excursion occurred. Potential false alert at destination - A logger registered a temperature excursion but the logger location data indicates that this happened after the logger arrived at the destination site. Potentially misdelivered - A logger in the shipment might have been delivered outside geofence. Shipment recreated - Shipment was created in SCM after the shipment started shipping. Start button not pressed - A start button press is required on at least one logger according to the open type of the shipment but no start button has been pressed. Stop button not pressed - A stop button press is required on all loggers according to the closure type of the shipment but not all loggers have a stop button event. Temperature alarm - A logger registered a temperature outside of the temperature boundaries of the shipment. USB Upload - Manual USB data upload was performed before closing the shipment. Missing data - The shipment has missing data according to the shipment analysis. Other - The shipment is non-RFT, but the reason is not covered by any of the defined exceptions above.

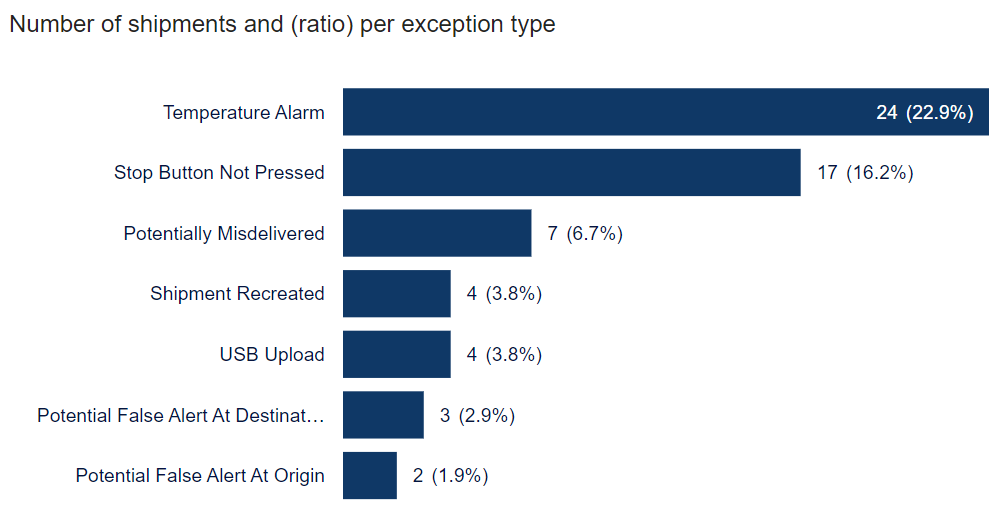

Number of shipments and (ratio) per exception type

Note

The free version of the dashboard only shows data for the top five ranked lanes.

Graph - Number of shipments and ratio of exceptions by exception type

Number of shipments and ratio of exceptions by exception type for the top five ranked lanes. The bar size indicates the number of shipments with this exception. The numbers indicate the number of shipments with this exception, and in parentheses is the ratio of shipments with this exception.

Exception types over time

Note

The free version of the dashboard only shows data for the top five ranked lanes.

Graph - Exceptions trend over time in top 5 ranked lanes - free version

Trend of exception types over time for the top five ranked lanes.

Lane sub-tab - free version

Note

The free version of the dashboard only shows data for the top five ranked lanes.

To see details about exceptions for lanes, click Lane.

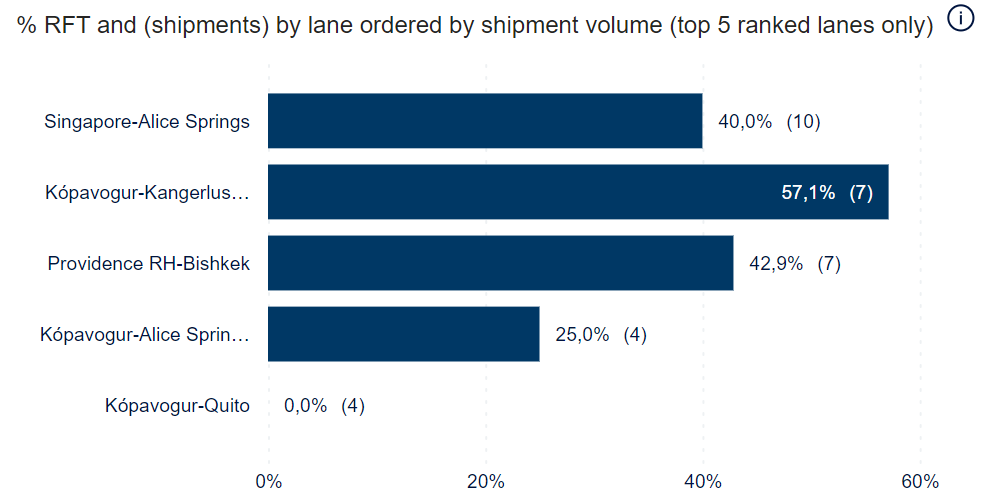

% RFT and (shipments) by lane ordered by shipment volume (top 5 ranked lanes only)

Graph - Ratio of RFT and number of shipments by lane - free version with only top 5 ranked lanes

Number of shipments and ratio of exceptions by exception type, for the top five ranked lanes:

x% - Ratio of RFT shipments on this lane.
(x) - Number of shipments on this lane for the selected period.

Note

You can click a lane to filter the shipments shown in the dashboard.

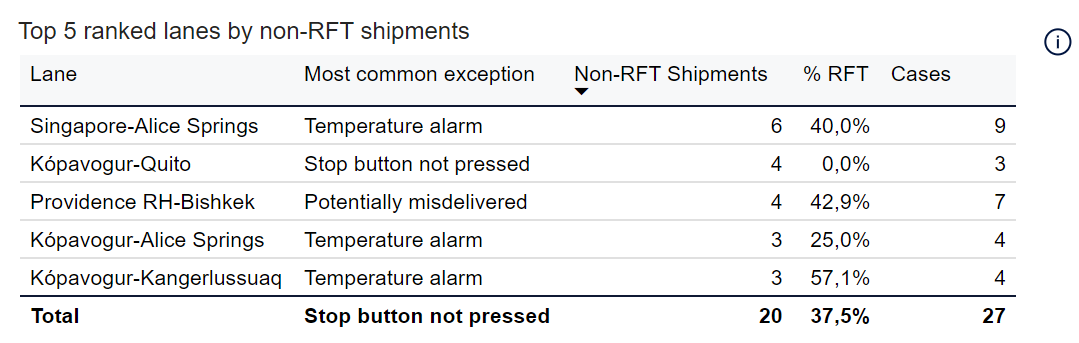

Top 5 ranked lanes by non-RFT shipments

Table - Exceptions in top 5 ranked lanes by lane - free version

Most common exceptions by lane, for the top five ranked lanes.

Note

You can click a lane in the % RFT and (shipments) by lane ordered by shipment volume graph to filter the shipments selected.

Item	Description
Lane	Lane of shipment. Origin-destination of shipment.
Most common exception	Most common exception for this lane. One of the following: Delivered for 150 days or more - Shipment has been in `Delivered` status for more than 150 days without being closed. Potential false alert at origin - A logger registered a temperature excursion but the logger location data indicates that the shipment was still at the origin site when the temperature excursion occurred. Potential false alert at destination - A logger registered a temperature excursion but the logger location data indicates that this happened after the logger arrived at the destination site. Potentially misdelivered - A logger in the shipment might have been delivered outside geofence. Shipment recreated - Shipment was created in SCM after the shipment started shipping. Start button not pressed - A start button press is required on at least one logger according to the open type of the shipment but no start button has been pressed. Stop button not pressed - A stop button press is required on all loggers according to the closure type of the shipment but not all loggers have a stop button event. Temperature alarm - A logger registered a temperature outside of the temperature boundaries of the shipment. USB Upload - Manual USB data upload was performed before closing the shipment. Missing data - The shipment has missing data according to the shipment analysis. Other - The shipment is non-RFT, but the reason is not covered by any of the defined exceptions above.
Non-RFT shipments	Number of shipments considered Non-RFT for this lane.
% RFT	Ratio of shipments considered RFT for this lane.
Cases	Number of cases of this exception for this lane.

Page footer

Item	Description
Data model	Version number of the data model the data is retrieved from.
Report	Version number of this dashboard.
(Report name)	Name of this dashboard.
Last refreshed	Date dashboard was last updated, in `M/D/YYY HH:MM:SS tt` format. The dashboard is updated once per day, and the dashboard will contain data retrieved from loggers up to this date. Note In some cases a shipment that was closed shortly before a refresh will not be included in the report until the next refresh.
